Product Code: SAF02
General:

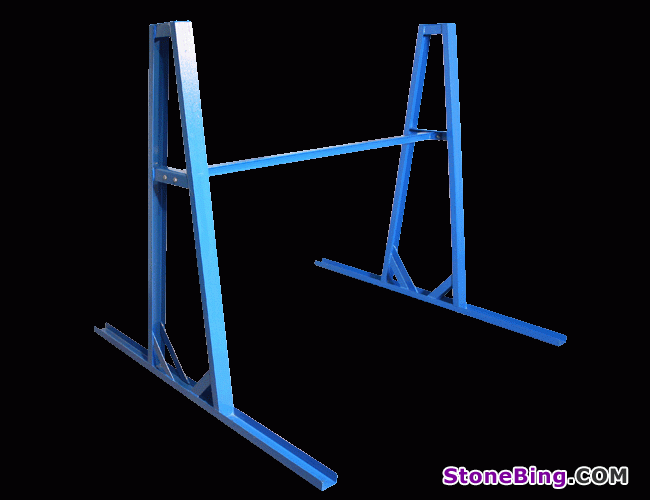

Includes two A

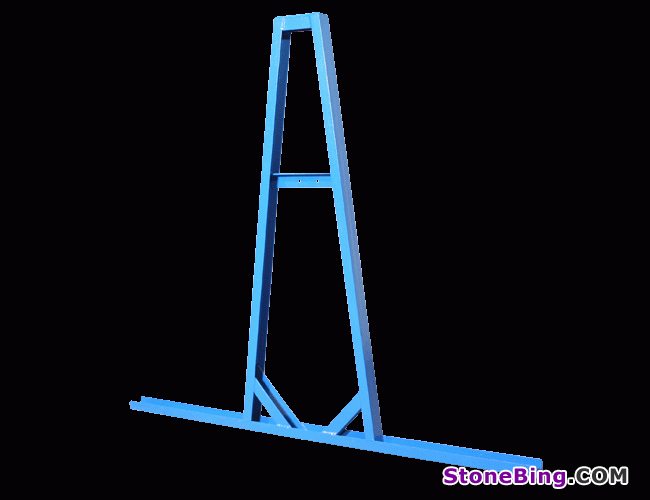

frame sections, cross member, and all necessary hardware. Middle support bar connects each A-
Frame end piece
Features:
Store slabs on both sides
Capacity: 5,500 Kgs (12,000 lbs) per side
Specifications:
Dimensions: 1624mm (64'') H x 1830mm (6') W x 1830mm (6') L
Constructed of 100mm (4'') channel and 50mm (2'') angle iron
Packaged Volume: 0.4831 M3.
Net Weight: 60.61 Kgs.
Gross Weight: 62 Kgs.
