FLOTTER 57/42 NR.7 HEADS:


Technical details
Front spindles n. 7
Bevelling spindles n. 4
Min/Max working thickness mm 10/100
Feed speed (conveyor belt) mm/min. 10/2300
Water consumption l/min. 80
Max Power required kW 26
Overall dimensions mm 4700X1800X2000
Machine weight kg 3400
Diameter of the calibration wheel mm 200/250

Description
      FROM MEDIUM SIZED

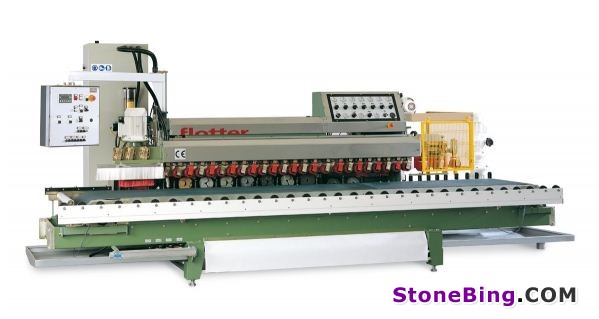

      The result of years of experience at CMG, the FLOTTER SYSTEM, for high quality finishing and increased production .The new FLOTTER 57/42 automatic edge polisher, for flat edges, is the first machine built with "floating" frontal polishing heads for finishing marble and granite.

Main features
      The structural integrity of the machine is protected from corrosion thanks to an arc welded heavy-duty steel frame which is sandblasted and then finished with several layers of paint, starting with a base layer of galvanized epoxy. The feed belt runs on precision machined plates which are 12 mm thick.
      All of the protective guards, electrical and control box covers of the FLOTTER 57/42 are made of stainless steel.
The frontal rotation polishing and chamfers spindles are chromium plated, and the inside shaft is suitable for 130 and 150 mm diameter spindles. The FLOTTER 57/42 has a tank to collect water with a drain on the side.
Each polishing head is controlled automatically during the entire working cycle with the possibility of programming the lenght of the edge to be polished.
