Powerful Performance:
1. The turbocharged engine with low oil consumption and high quality, enjoys good performance and strong torque.
2. The planetary power shift transmission and hydraulic torque converter with two turbo have wider high-efficient area, easy control and high reliability.
3. Integral quenching fork is high intensity and more wearable.
4. Enlarged Q-style axles with bigger axle hub/gears and bearing have a strong surport capacity.
5. Hydraulic coaxial flow-enlarge style turning system makes operationeasy and flexible.
6. Sound/heat isolated and damping ROPS cabin with broad view and comfortable seat makes operation more safe and reliable.
7. Double-tube caliper disc brake in four wheels and rear installed brake booster make the operation more safe and reliable.
Notes of the equipment working:
1. When working, the equipment must be fitted to protection chain.
2. When the rated load is 20t, the largest lifting height should be less than 1.5m.
3. In order to be safe, at the soft surface, slope, steering angle is greater than 10°, the heavy load's focus is forward, the load should be limited to 15 tons.
4. Max. gradeability should be less than 20°.
Remarks: The specification is subject to change withour notice.

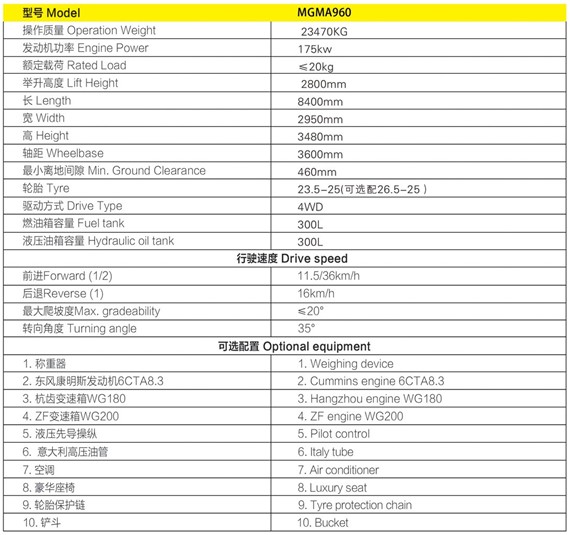

Click to view larger image.
