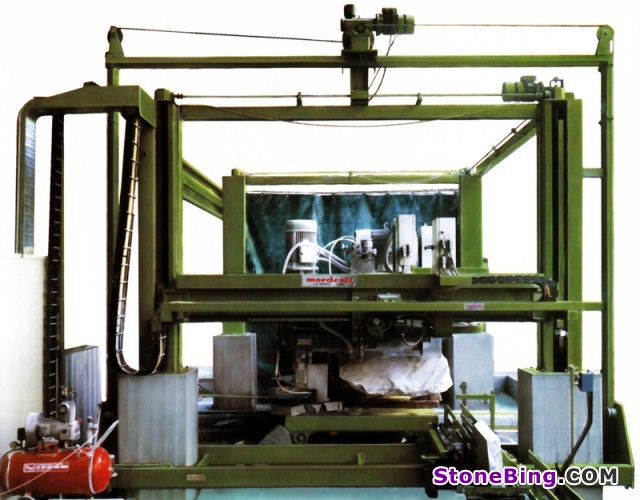

utomatic block cutting machine with four columns

Machine frame:
The frame of Mord T4/M is made of 4 stout columns with relative connection beams.
Four big screws, with relative lead screws in special seizing proof material, grant the ascent and descent movement of the two traverses on which the bridge holding spindles slides.

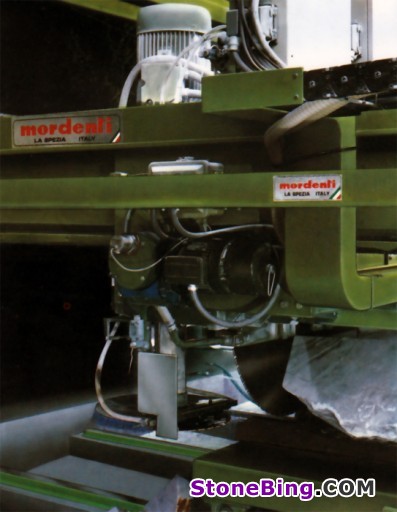

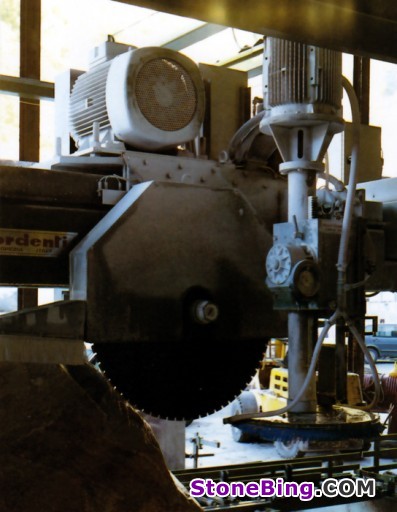

Bridge holding spindles trolley:
The bridge is manufactired with a double steel beam, capable to grant the spindle group the max stiffness during the cut.
The bridge movement on the beams comes with oil-bath little rollers on ground plate.

The tempered steel interchangeable guides are housed on the bridge, for the sliding of the carriage in oil bath.
The bridge and carriage sliding guides are equipped with suitable protections.
