waterjet cutting machinery equipment

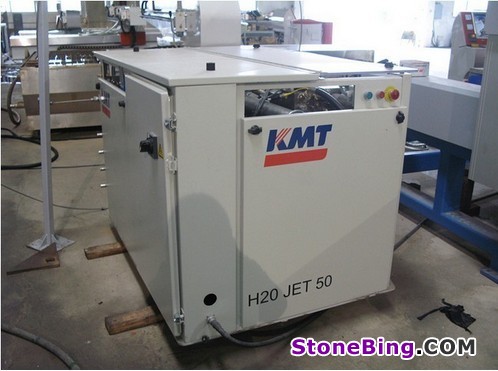

KMT pump waterjet 3020
|
Click to view larger image. |
|
Detail
| Model NO.: | HY3020 |
|---|---|
| Process Usage: | |
| Performance Classification: | High-End CNC Machine Tools |
| CNC Device Constituted: | Soft Wire CNC System |
| Movement Method: | Point to Point Control |
| Control Method: | Semi-Closed Loop Control |
| Color: | Red |
| Export Markets: | Global |
| Trademark: | SAME |
|---|---|
| Packing: | Wooden Packing |
| Origin: | Guang Zhou, China |
| HS Code: | 84649011 |
| Production Capacity: | 1000PCS/Year |

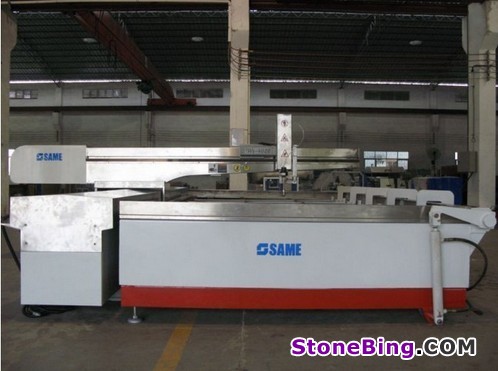

KMT Water jet cutting machine
Water jet cutting machine can cut stone, glass,

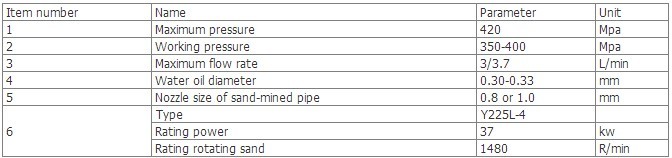

HY420 ULTRA HIGH PRESSURE PUMP/ High pressure water jet cutting machine
To expand the horizon of waterjet applications and meet the rising needs of thin and fragile material cutting, SAME presents the HY420 with intensifier structure.
Rated pressure: 420Mpa
Flow: 3.7L/min
Power: 37KW
Power Section: (two systems of manual variable pump + frequency converter ad automatic liquid control variable pump for the user select)
Manual variable pump system: The main motor is directly connected to the manual variable plunger pump, utilizing frequency conversion energy saving technology, realizing frequency decreasing startup and frequency conversion pressure regulating, with effective energy saving ≥ 30%.
B. Automatic variable pump system: Utilizing state of the art hydraulic variable technology, through hydraulic changing DIP angle of the sloping cam plate it directly control pump delivery of the oil pump, consequently changing the system pressure, no redundant hydraulic oil to reflow through the overflow valve. So the energy loss is very little, with effective energy saving ≥ 30%.
