Product: SKJ-80 Gang saw for marble  Price: Bargain  Delivery Period: Shipped within days from the date of payment of the buyers. Last Updated: 14 Nov,2012   Valid Until： Long-term effective

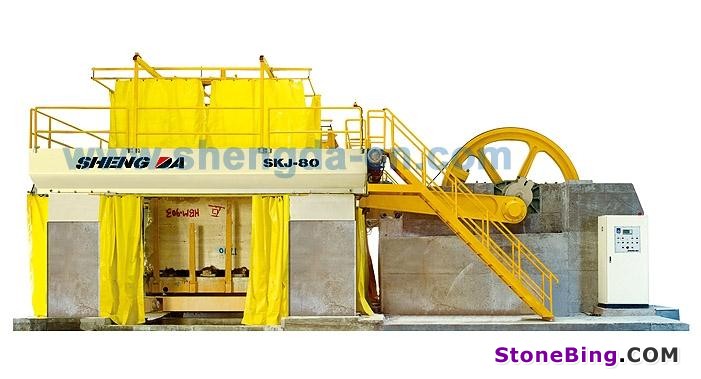

SKJ-80 Gang saw for marble



Static pressure guides of the blades frame (A) & Static pressure guides of the blades frame (B)

Technical Parameter

Bridge cutting machine		SKJ-80	SKJ-100
Max.dimensions of blocks(LxWxH)	mm	3250X2000X2000	3250X2500X2000
Max.No.of blades	nº	80	100
Blade length	mm	4350	4350
Cutting feed	mm/h	0-305	0-305
Blade stroke	mm	800	800
Strokes per minute	rpm	90	90
Main motor power	kw	90	90
Overall dimensions(LxWxH)	mm	12800x5500x6200	12800x6000x6200
