Product: ZDCQ-400 Bridge cutting machine  model： ZDCQ-400 Price: Bargain  Delivery Period: Shipped within days from the date of payment of the buyers. Last Updated: 14 Nov,2012   Valid Until： Long-term effective

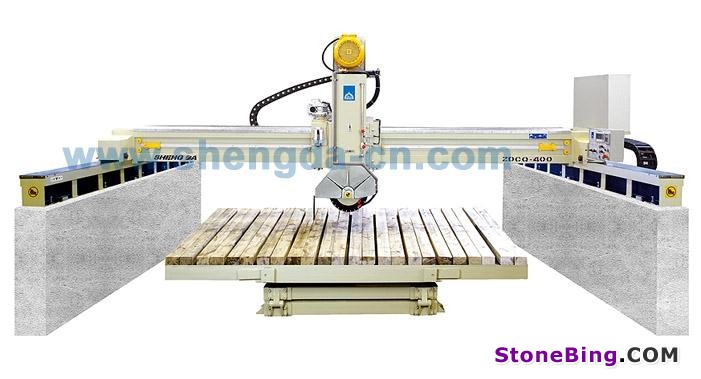

ZDCQ-400 Bridge cutting machine

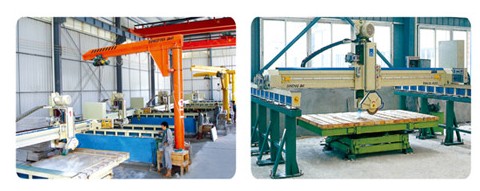

Optional arm crane & Optional steel legs

Optional concrete base

Technical Parameter

Bridge cutting machine		ZDCQ-400	ZDCQ-600
Max.working dimensions(LxWxH)	mm	3200 x 3200 x 65	3200 x 3200 x 160
Max.diameter of blade	mm	400	600
Table diamensions(LxM)	mm	3200 x 2000	3200 x 2000
Table tilting degree	nº	0-85	0-85
Table rotating degree	nº	90	360
Main motor power	kw	15	15
Water consumption	m3/h	4	4
Overall dimensions(LxWxH)	mm	6000 x 5000 x 2800	6000 x 5000 x 2800
