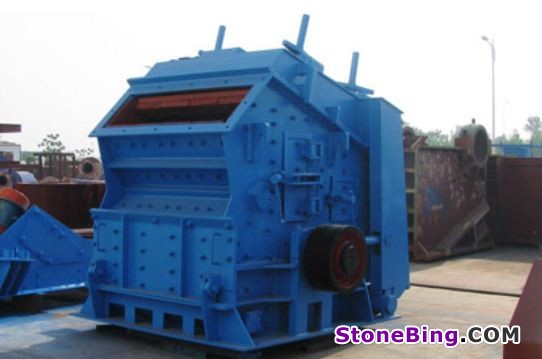

Click to view larger image.

Product: Impact Crusher  Price: Bargain  Delivery Period: Shipped within 3 days from the date of payment of the buyers. Last Updated: 08 Jun,2012   Valid Until： Long-term effective

PF Series Impact Crusher has such advantages as: simple in structure, large crushing ratio, low energy consumption, high output, light weight, cubic final product, and it is usde in mineral processing, chemical, cement, construction, refractory material, ceramics, glass, etc, such industrial sector for midium, fine and medium-hard materials. Eg: limestone, clinker, slag, carbon coke, coal etc. PF Series Impact Crusher has larger crushing ratio, and can make full use of the high-speed impacting energy of the entire rotor. However, due to the blow bar is easily to wear, so it is restricted in hard materials. So Impact Crusher is mainly usde in coarse, midium, and fine crush, such as, limestone, coal, Calcium Carbide, quartz, dolomite, sulfuration iron ore, gypsum, chemical raw material etc, under midium hard brittle material. the ideal size of PF Series Impact Crusher is from 100-500mm, the max feed size shouldn't exceed the specified value. Users can adjust the space between the hammer and Impact plate, components of the machine, then get the final product.
 Impact crusher working principle:
 PF Series Impact Crusher use impact energy to crush materials. When the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed, then discharged from the discharge port. Users can adjust the space between Impact Rack and Rotor Support, and then get to the expected size.
