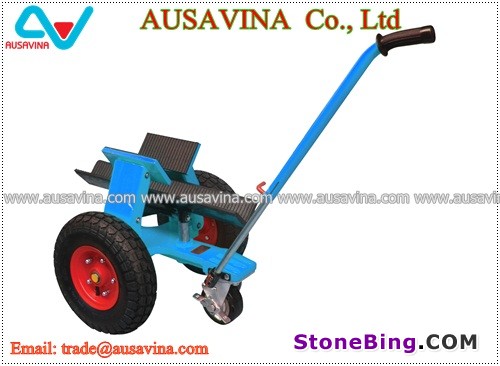

SELF LOCKING TROLLEY M2
 |
The Self Locking Trolley M2 is a heavy duty, all terrain dollies. The rubber is vulcanized to the bottom and sides of the dolly to avoid chipping the edges of finished work pieces. They are designed with self-locking jaws for maneuvering stone slabs around the shop, warehouse, or on the work site. The self-locking jaw' clamping strength is proportional to the weight of the slab, therefore the heavier the slab, the larger the clamping force. |
|
Specifications |
||||||
|
Model Number |
Length Inches (mm) |
Width Inches (mm) |
Height Inches (mm) |
Grip Range Inches (mm) |
Net Weight Pounds (kg) |
W.L.L. Pounds (kg) |
|
SLT13M2 |
23 3/4 (600) |
20 1/2 (520) |
18 1/2 (470) |
3/8 - 4 (10 - 100) |
72.6 (33) |
880 (400) |
| M2 has Pneumatic Tires and a Third Wheel. |
||||||

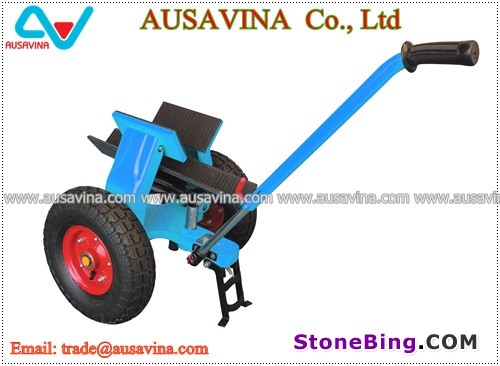

SELF LOCKING TROLLEY M3
 |
The Self Locking Trolley M3 is a heavy duty, all terrain dollies. The rubber is vulcanized to the bottom and sides of the dolly to avoid chipping the edges of finished work pieces. They are designed with self-locking jaws for maneuvering stone slabs around the shop, warehouse, or on the work site. The self-locking jaw' clamping strength is proportional to the weight of the slab, therefore the heavier the slab, the larger the clamping force. |
|
Specifications |
||||||
|
Model Number |
Length Inches (mm) |
Width Inches (mm) |
Height Inches (mm) |
Grip Range Inches (mm) |
Net Weight Pounds (kg) |
W.L.L. Pounds (kg) |
|
SLT13M3 |
19 1/4 (490) |
20 1/2 (520) |
18 1/2 (470) |
3/8 - 4 (10 - 100) |
63.8 (29) |
880 (400) |
| M3 has Pneumatic Tires and a Kick Stand. |
||||||

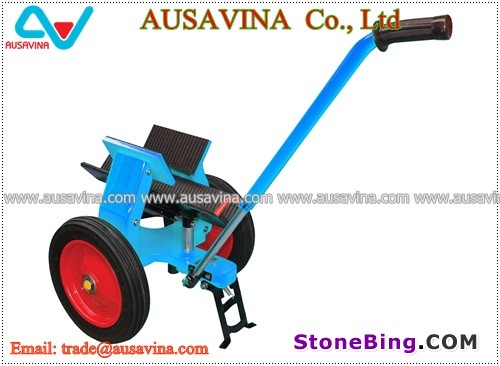

SELF LOCKING TROLLEY M4
 |
The Self Locking Trolley M4 is a heavy duty, all terrain dollies. The rubber is vulcanized to the bottom and sides of the dolly to avoid chipping the edges of finished work pieces. They are designed with self-locking jaws for maneuvering stone slabs around the shop, warehouse, or on the work site. The self-locking jaw' clamping strength is proportional to the weight of the slab, therefore the heavier the slab, the larger the clamping force. |
|
Specifications |
||||||
|
Model Number |
Length Inches (mm) |
Width Inches (mm) |
Height Inches (mm) |
Grip Range Inches (mm) |
Net Weight Pounds (kg) |
W.L.L. Pounds (kg) |
|
SLT13M4 |
19 1/4 (490) |
19 5/8 (500) |
17 7/8 (455) |
3/8 - 4 (10 - 100) |
68.2 (31) |
880 (400) |
| M4 has Solid Rubber Tires and a Kick Stand. |
||||||
